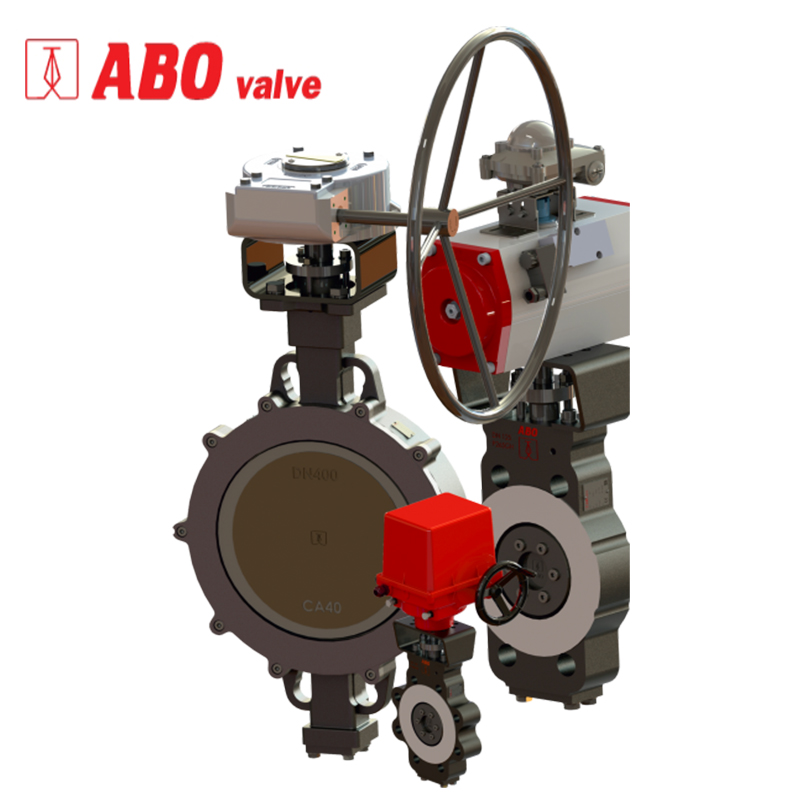

ABO's 3E Series triple eccentricity butterfly valves are designed for operation in very demanding environments that require high safety, trouble-free operation and minimal maintenance. The triple eccentricity design contributes to a very efficient metal-to-metal sealing principle, which is designed primarily for high parameter sealing at both pressures and temperatures. The appropriately designed geometry eliminates friction between the seating surfaces of the sealing TRIM, which aids in the longevity of the damper. The main sealing node is formed by a high precision sealing pair with a special bevelled cone geometry.
NOMINAL SIZE:
DN80 – DN600BODY TYPE:
Interflanged WAFER type with through holes
LUG type with threaded holes
Double flanged With through holesWORKING PRESSURE:
25 bar / 40 bar / 50 barFLANGE CONNECTION:
PN10 / PN16 / PN25 / PN40 / Class 150 / Class 300WORKING TEMPERATURE:
-60 °C / +500 °CWORKING MEDIA:
Waste and supply water, Potable water, Hot industrial water, Petroleum products, Fuel, Oil, Oil derivatives, Pulp, Paper stock, Gas, Steam, Condensate, Air, Bitumen (asphalt), ect.TIGHTNESS:
Class A/BBODY MATERIAL:
Low carbon steel 1.1156 (A352 LCC) / 1.0566
Low carbon steel 1.0566 + stellite
Carbon steel 1.0625 (A216 WCB) / 1.4025
Carbon steel 1.4025 + stellite
Stainless steel 1.4408 (A351 CF8M) / 1.4401 (AISI 316)
Stainless steel 1.4401 (AISI 316) + stellite
ATEX and TA-luft seal on request
